Description

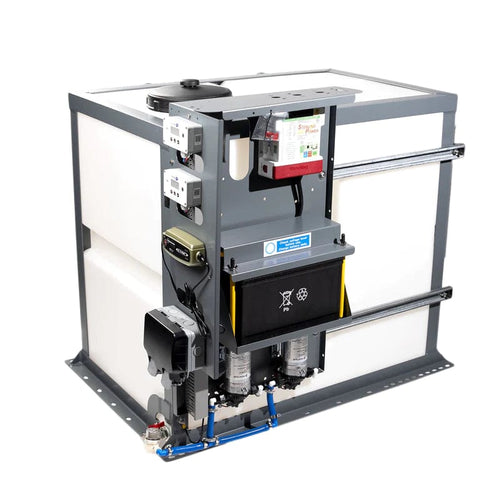

The Pure Freedom Upright Van Mounted System is a crash tested water fed system for one operator, with an upright tank of 350, 500, 650 or 800 litres in a coated or stainless steel frame.
Registered Design UK IPO Number: 6469372
The upright tank takes less floor: 840 mm wide on the 350 litre and 1019 mm on the 800, standing 992 to 1170 mm high. It suits vans from the Ford Transit Connect up to the Renault Trafic, depending on the size, but check the space and payload in your own van before you order. The specifications table gives the size and weight of every version, and the drawings on the Safety tab give every measurement.
It runs one operator from a 100 psi diaphragm pump and a digital flow controller, powered by a lead acid leisure battery. A hose reel is not included: add one from the options on this page, such as the Pure Freedom ReelMaster™ Lite electric reel. Two people working from the van? See the Upright Double Operator.
Choose your filtration
- Delivery Only: no purification on board, for cleaners who fill from a static purification system or a pure water filling station.
- DI: fill from a water source and the water is purified as you use it. Advised for soft water areas.
- RO/DI: a four stage RO/DI system, in a second cabinet, that purifies the water as it enters the tank. Advised for hard water areas.
Not sure which suits your area? Types of filtration explained covers the difference. No chemicals are needed with any version.

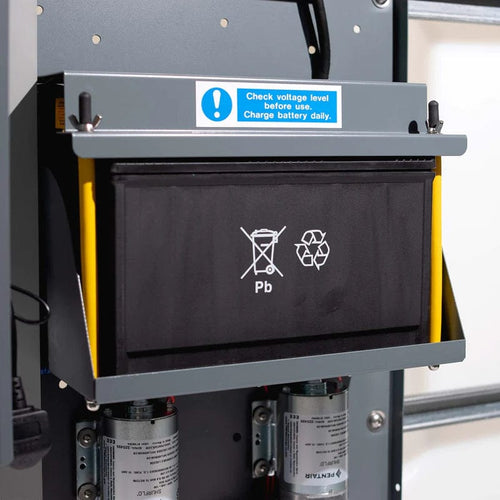

Charging the battery

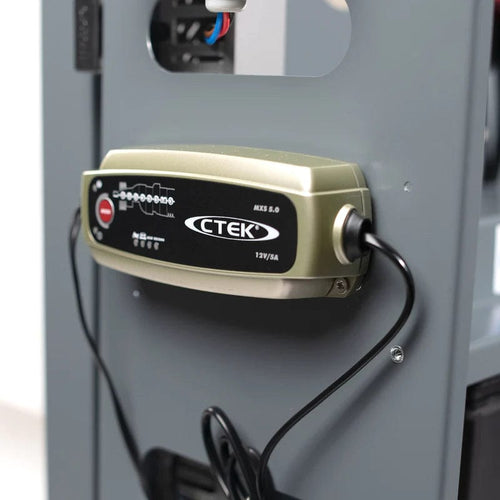

Charge the battery from the mains with a smart charger, or from the van with a split charge relay or an Orion-Tr Smart battery to battery charger. Our battery charging guide explains which suits your van.
Fitting
We fit systems at our install centres in Barry, Liverpool, Grimsby, Billericay and Northern Ireland, and installation is usually booked within 5 to 7 working days. Add it from the options on this page, or see Water Fed System Installation.
Each system is built to order, so individual parts may differ slightly from the pictures.
Product Specifications
Delivery & Returns
Safety
CODE: M-U-350-DE
Pure Freedom Upright Van Mounted Systems - Single Operator
£2,200.75
£2,640.90
Optional Extras
Pure Freedom ReelMaster™ Lite Electric Hose Reel
£595.00
£714.00
FaceLift® Premium Resin MB115 - 25 Litre
£87.95
£105.54
Handheld TDS Meter
£22.00
£26.40
Finance Options
Description
The Pure Freedom Upright Van Mounted System is a crash tested water fed system for one operator, with an upright tank of 350, 500, 650 or 800 litres in a coated or stainless steel frame.
Registered Design UK IPO Number: 6469372
The upright tank takes less floor: 840 mm wide on the 350 litre and 1019 mm on the 800, standing 992 to 1170 mm high. It suits vans from the Ford Transit Connect up to the Renault Trafic, depending on the size, but check the space and payload in your own van before you order. The specifications table gives the size and weight of every version, and the drawings on the Safety tab give every measurement.
It runs one operator from a 100 psi diaphragm pump and a digital flow controller, powered by a lead acid leisure battery. A hose reel is not included: add one from the options on this page, such as the Pure Freedom ReelMaster™ Lite electric reel. Two people working from the van? See the Upright Double Operator.
Choose your filtration
- Delivery Only: no purification on board, for cleaners who fill from a static purification system or a pure water filling station.
- DI: fill from a water source and the water is purified as you use it. Advised for soft water areas.
- RO/DI: a four stage RO/DI system, in a second cabinet, that purifies the water as it enters the tank. Advised for hard water areas.
Not sure which suits your area? Types of filtration explained covers the difference. No chemicals are needed with any version.
Charging the battery
Charge the battery from the mains with a smart charger, or from the van with a split charge relay or an Orion-Tr Smart battery to battery charger. Our battery charging guide explains which suits your van.
Fitting
We fit systems at our install centres in Barry, Liverpool, Grimsby, Billericay and Northern Ireland, and installation is usually booked within 5 to 7 working days. Add it from the options on this page, or see Water Fed System Installation.
Each system is built to order, so individual parts may differ slightly from the pictures.
Product Specifications
Delivery & Returns
Safety
WHAT'S INCLUDED?

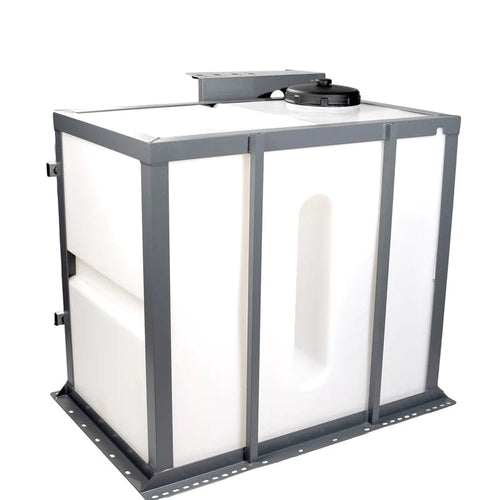

Upright tank
An upright tank of 350 to 800 litres, 840 to 1019 mm wide.
Coated or stainless frame
A crash tested steel frame in a coated or stainless steel finish.
100 psi diaphragm pump
One 100 psi diaphragm pump, housed in the cabinet, run from a leisure battery.

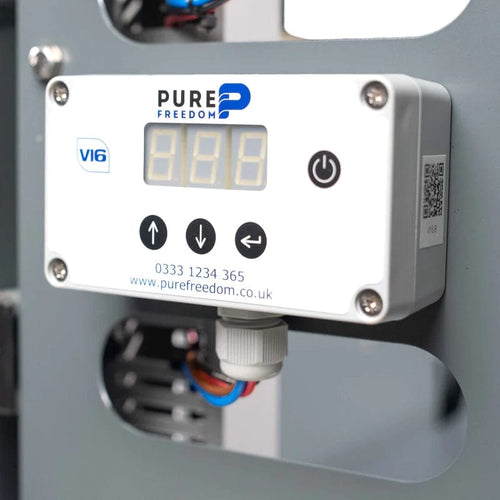

Digital flow controller
A digital flow controller on the cabinet to set the flow.
Delivery Only or DI
Delivery Only has no filtration on board; DI purifies as you use it.
Four stage RO/DI
RO/DI in a second cabinet purifies the water as the tank fills.
KEY BENEFITS
WHY THIS PRODUCT?
Less floor taken
The upright tank is 204 to 404 mm narrower than the Flat on a near identical length, leaving more room beside it.
Filtration for your water
Delivery Only, DI or four stage RO/DI, to suit your water and how you fill.
Four tank sizes
350, 500, 650 or 800 litres, so you can match the tank to your round and your van's payload.
Coated or stainless
Every size comes in a coated or a stainless steel frame, with the same parts inside.
Fitted in around 6 hours
Book fitting at Barry, Liverpool, Grimsby, Billericay or Northern Ireland, including electric and hybrid vans.
Support after you buy
Talk to us by email, phone, WhatsApp or chat, with free engineer technical calls for customers.
Product Specifications
Coated and stainless steel are the same size. Length excludes the outlet fittings, which add 42 to 50 mm. Width includes the cabinet. On the RO/DI versions the RO column stands 1296 to 1326 mm high, and on the 350 and 500 the two cabinets run 1311 mm long.
| SIZE | LENGTH | WIDTH | HEIGHT | WEIGHT EMPTY, DELIVERY ONLY | WEIGHT EMPTY, DI | WEIGHT EMPTY, RO/DI |
|---|---|---|---|---|---|---|
| 350 litre | 1109 mm | 840 mm | 992 mm | 97 kg (stainless 98 kg) | 101 kg | 128 kg (stainless 129 kg) |
| 500 litre | 1106 mm | 936 mm | 995 mm | 99 kg (stainless 100 kg) | 102 kg (stainless 103 kg) | 133 kg (stainless 134 kg) |
| 650 litre | 1361 mm | 890 mm | 1087 mm | 121 kg (stainless 122 kg) | 124 kg (stainless 125 kg) | 154 kg (stainless 156 kg) |
| 800 litre | 1361 mm | 1019 mm | 1170 mm | 134 kg (stainless 135 kg) | 137 kg (stainless 139 kg) | 168 kg (stainless 169 kg) |
