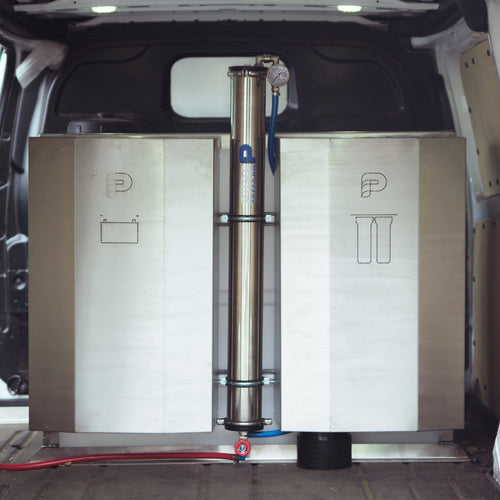

Description

The Pure Freedom Upright Van Mounted System, Double Operator is a crash tested water fed system for two operators, with an upright tank of 350, 500, 650 or 800 litres in a coated or stainless steel frame.

Registered Design UK IPO Number: 6469372

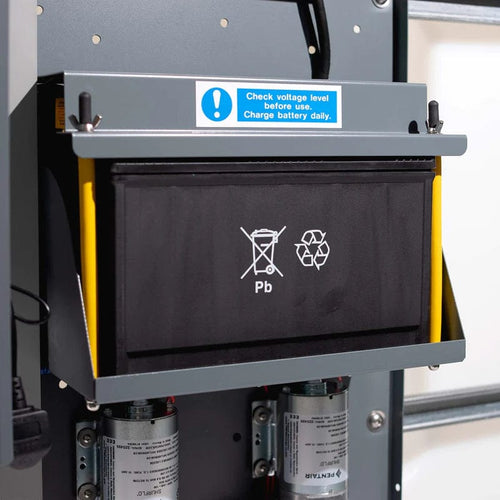

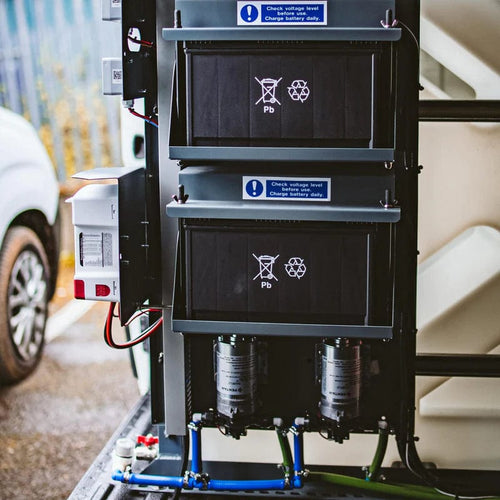

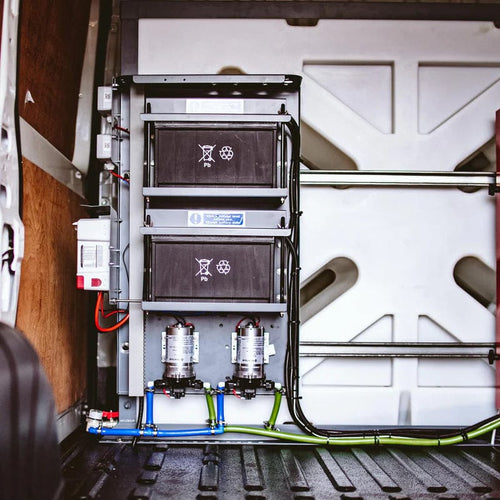

Two 100 psi diaphragm pumps and two digital flow controllers, run from a lead acid leisure battery, let two people work from the same van. Hose reels are not included: add two from the options on this page, such as the Pure Freedom ReelMaster™ Lite electric reel. Working alone? See the Upright Single Operator.

The upright tank takes less floor: 840 mm wide on the 350 litre and 1019 mm on the 800, standing 992 to 1170 mm high. It suits mid to large vans such as the Ford Transit Custom and Renault Trafic, but check the space and payload in your own van before you order. The specifications table gives the size and weight of every version, and the drawings on the Safety tab give every measurement.

Choose your filtration

  • Delivery Only: no purification on board, for cleaners who fill from a static purification system or a pure water filling station.
  • DI: fill from a water source and the water is purified as you use it. Advised for soft water areas.

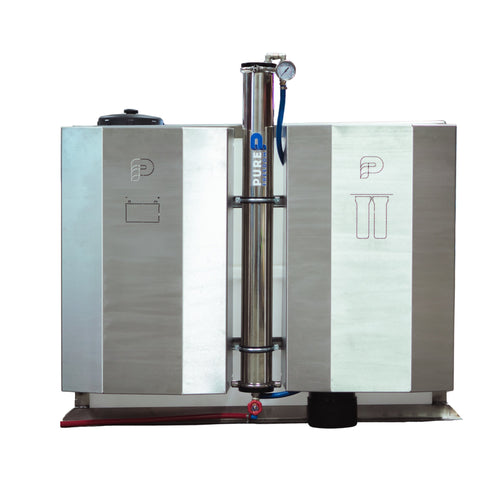

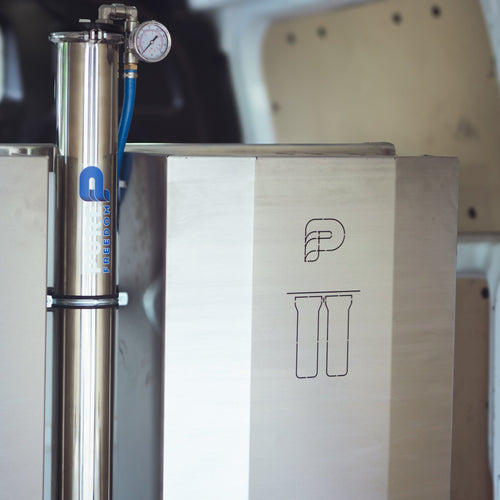

  • RO/DI: a four stage RO/DI system, in a second cabinet, that purifies the water as it enters the tank. Advised for hard water areas.

Not sure which suits your area? Types of filtration explained covers the difference. No chemicals are needed with any version.

Charging the battery

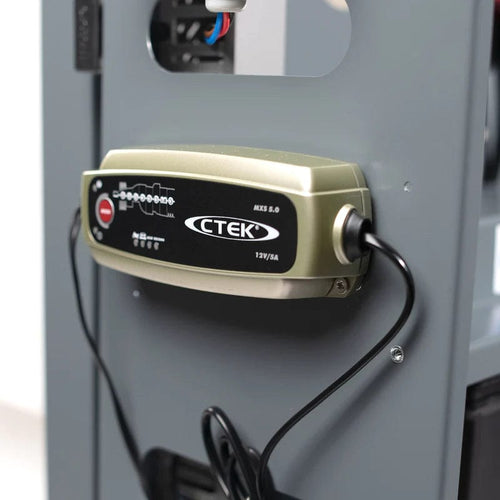

Charge the battery from the mains with a smart charger, or from the van with a split charge relay or an Orion-Tr Smart battery to battery charger. Our battery charging guide explains which suits your van.

Fitting

We fit systems at our install centres in Barry, Liverpool, Grimsby, Billericay and Northern Ireland, and installation is usually booked within 5 to 7 working days. Add it from the options on this page, or see Water Fed System Installation.

Each system is built to order, so individual parts may differ slightly from the pictures.

Product Specifications

  • Capacity: 350, 500, 650 or 800 litres
  • Operators: 2, each with their own pump and flow controller

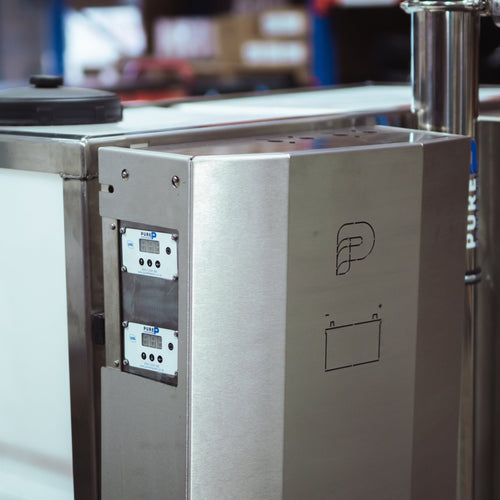

  • Frame: coated or stainless steel, crash tested
  • Pumps: two 100 psi diaphragm

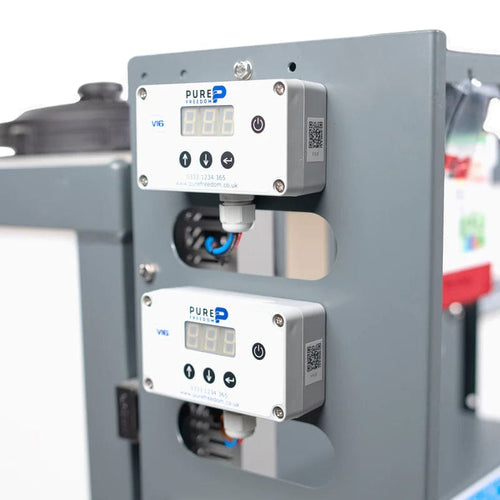

  • Flow control: two digital flow controllers
  • Battery: lead acid leisure battery
  • Filtration: Delivery Only, DI, or four stage RO/DI in a second cabinet
  • Hose reels: not included, sold separately
  • Size: 1106 to 1361 mm long, 840 to 1019 mm wide, 992 to 1170 mm high (RO column up to 1326 mm)
  • Weight: 99 to 172 kg empty; see the specifications table
  • Registered Design UK IPO Number: 6469372
  • Built to order: individual parts may differ slightly from the pictures

Delivery & Returns

Built to order: van systems are built to order and usually delivered within 7 to 10 working days.

  • Pallet delivery: free to mainland UK. Your system arrives on a pallet, on a large vehicle with a tail lift.
  • Installation: if you add installation, your system goes straight to the install centre. If not, please don't arrange fitting until it has arrived.
  • Access: the driver needs room for a vehicle around 13m long, and flat, level, solid ground for the pallet truck. If access is tight, contact us before you order.
  • Signature: someone needs to be there to sign, so please add a phone number at checkout for the driver.
  • Failed deliveries: a redelivery is charged at £75 ex VAT.
  • Northern Ireland and the Scottish Highlands: longer delivery times and possible extra charges.
  • Returns: as an oversized item, this may not be eligible for return. Please contact our customer service team before ordering if you are unsure; the returns policy has the details.
  • More detail: our pallet delivery guide.

Delivery times are not guaranteed. Window Cleaning Warehouse cannot accept liability for items delivered to third party or unsecured addresses.

Safety

Dimension drawings for all 24 versions, to help plan the fit in your van:

The 3D and AR viewer is a guide only; use the drawings for exact measurements.

CODE: M-U-350-DE-2

Pure Freedom Upright Van Mounted Systems - Double Operator

  • Upright tank from 350 to 800 litres, for two operators
  • Crash tested, built to order, in a coated or stainless steel frame
  • Two 100 psi diaphragm pumps and two digital flow controllers
  • Delivery Only, DI or four stage RO/DI filtration

£2,410.75

£2,892.90

Made To Order
£2,410.75

Promo Available

Add To Cart To Unlock Free Shipping

Promo Available

Add To Cart To Unlock Free Shipping

Optional Extras

FaceLift® Ion-Fire Hot Water Window Cleaning System Van Systems
FaceLift® Ion-Fire Hot Water Window Cleaning System Van Systems

FaceLift® Ion-Fire Hot Water Window Cleaning System

Add hot water to your van mounted system, provide a faster clean and protect yourself during the winter.

£4,571.07

£5,485.28

FaceLift® Pole Rack Van Systems
FaceLift® Pole Rack Van Systems Powder Coated Steel

FaceLift® Pole Rack

£174.25

£209.10

Handheld TDS Meter Water Purification
Handheld TDS Meter Water Purification

Handheld TDS Meter

£22.00

£26.40


Finance Options

per month (Exc. Vat)

Please note that this is just an example of possible terms. All finance agreements are facilitated by Kennet Leasing and are subject to credit checks and acceptance by both Kennet Leasing & ourselves. A full list of terms and conditions will be made available when applying for finance directly through Kennet. All finance quotes are exclusive of VAT.

Finance Breakdown

Quote based on £

Weekly Payment £

Monthly Payment £4

First Payment £

Total Amount £

Tax Relief @ 20% £

Net cost of Finance £

Note: Finance quotes exclude VAT

Finance

Finance Request Form

Description

The Pure Freedom Upright Van Mounted System, Double Operator is a crash tested water fed system for two operators, with an upright tank of 350, 500, 650 or 800 litres in a coated or stainless steel frame.

Registered Design UK IPO Number: 6469372

Two 100 psi diaphragm pumps and two digital flow controllers, run from a lead acid leisure battery, let two people work from the same van. Hose reels are not included: add two from the options on this page, such as the Pure Freedom ReelMaster™ Lite electric reel. Working alone? See the Upright Single Operator.

The upright tank takes less floor: 840 mm wide on the 350 litre and 1019 mm on the 800, standing 992 to 1170 mm high. It suits mid to large vans such as the Ford Transit Custom and Renault Trafic, but check the space and payload in your own van before you order. The specifications table gives the size and weight of every version, and the drawings on the Safety tab give every measurement.

Choose your filtration

  • Delivery Only: no purification on board, for cleaners who fill from a static purification system or a pure water filling station.
  • DI: fill from a water source and the water is purified as you use it. Advised for soft water areas.
  • RO/DI: a four stage RO/DI system, in a second cabinet, that purifies the water as it enters the tank. Advised for hard water areas.

Not sure which suits your area? Types of filtration explained covers the difference. No chemicals are needed with any version.

Charging the battery

Charge the battery from the mains with a smart charger, or from the van with a split charge relay or an Orion-Tr Smart battery to battery charger. Our battery charging guide explains which suits your van.

Fitting

We fit systems at our install centres in Barry, Liverpool, Grimsby, Billericay and Northern Ireland, and installation is usually booked within 5 to 7 working days. Add it from the options on this page, or see Water Fed System Installation.

Each system is built to order, so individual parts may differ slightly from the pictures.

Product Specifications

  • Capacity: 350, 500, 650 or 800 litres
  • Operators: 2, each with their own pump and flow controller
  • Frame: coated or stainless steel, crash tested
  • Pumps: two 100 psi diaphragm
  • Flow control: two digital flow controllers
  • Battery: lead acid leisure battery
  • Filtration: Delivery Only, DI, or four stage RO/DI in a second cabinet
  • Hose reels: not included, sold separately
  • Size: 1106 to 1361 mm long, 840 to 1019 mm wide, 992 to 1170 mm high (RO column up to 1326 mm)
  • Weight: 99 to 172 kg empty; see the specifications table
  • Registered Design UK IPO Number: 6469372
  • Built to order: individual parts may differ slightly from the pictures

Delivery & Returns

Built to order: van systems are built to order and usually delivered within 7 to 10 working days.

  • Pallet delivery: free to mainland UK. Your system arrives on a pallet, on a large vehicle with a tail lift.
  • Installation: if you add installation, your system goes straight to the install centre. If not, please don't arrange fitting until it has arrived.
  • Access: the driver needs room for a vehicle around 13m long, and flat, level, solid ground for the pallet truck. If access is tight, contact us before you order.
  • Signature: someone needs to be there to sign, so please add a phone number at checkout for the driver.
  • Failed deliveries: a redelivery is charged at £75 ex VAT.
  • Northern Ireland and the Scottish Highlands: longer delivery times and possible extra charges.
  • Returns: as an oversized item, this may not be eligible for return. Please contact our customer service team before ordering if you are unsure; the returns policy has the details.
  • More detail: our pallet delivery guide.

Delivery times are not guaranteed. Window Cleaning Warehouse cannot accept liability for items delivered to third party or unsecured addresses.

Safety

Dimension drawings for all 24 versions, to help plan the fit in your van:

The 3D and AR viewer is a guide only; use the drawings for exact measurements.

WHAT'S INCLUDED?

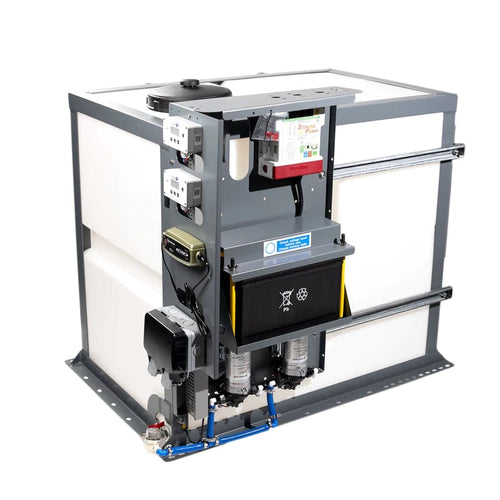

Upright tank

An upright tank of 350 to 800 litres, 840 to 1019 mm wide.

Coated or stainless frame

A crash tested steel frame in a coated or stainless steel finish.

Two 100 psi diaphragm pumps

One 100 psi diaphragm pump for each operator, housed in the cabinet.

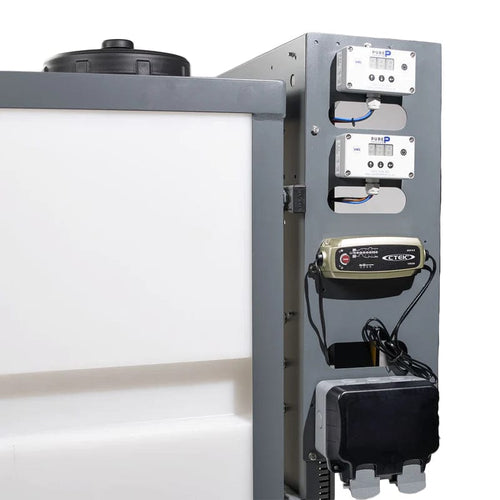

Two digital flow controllers

A digital flow controller for each operator to set their own flow.

Delivery Only or DI

Delivery Only has no filtration on board; DI purifies as you use it.

Four stage RO/DI

RO/DI in a second cabinet purifies the water as the tank fills.

KEY BENEFITS

Two pumps and two flow controllers, so two people work from one van
Two pumps and two flow controllers, so two people work from one van
An upright tank that takes less floor, 840 to 1019 mm wide
An upright tank that takes less floor, 840 to 1019 mm wide
Crash tested and built to order by Pure Freedom, Registered Design UK IPO Number 6469372
Crash tested and built to order by Pure Freedom, Registered Design UK IPO Number 6469372
Fitted for you at one of our five install centres
Fitted for you at one of our five install centres

WHY THIS PRODUCT?

Two operators, one van

Each operator has their own pump and flow controller, so two people clean at once from one tank.

Less floor taken

The upright tank is 204 to 404 mm narrower than the Flat on a near identical length, leaving more room beside it.

Filtration for your water

Delivery Only, DI or four stage RO/DI, to suit your water and how you fill.

Coated or stainless

Every size comes in a coated or a stainless steel frame, with the same parts inside.

Fitted in around 6 hours

Book fitting at Barry, Liverpool, Grimsby, Billericay or Northern Ireland, including electric and hybrid vans.

Support after you buy

Talk to us by email, phone, WhatsApp or chat, with free engineer technical calls for customers.

Product Specifications

Coated and stainless steel are the same size. Length excludes the outlet fittings, which add 42 to 50 mm. Width includes the cabinet. On the RO/DI versions the RO column stands 1296 to 1326 mm high, and on the 350 and 500 the two cabinets run 1311 mm long.

SIZE LENGTH WIDTH HEIGHT WEIGHT EMPTY, DELIVERY ONLY WEIGHT EMPTY, DI WEIGHT EMPTY, RO/DI
350 litre 1109 mm 840 mm 992 mm 99 kg (stainless 100 kg) 102 kg (stainless 103 kg) 130 kg (stainless 131 kg)
500 litre 1106 mm 936 mm 995 mm 101 kg (stainless 102 kg) 104 kg (stainless 105 kg) 135 kg (stainless 136 kg)
650 litre 1361 mm 890 mm 1087 mm 123 kg (stainless 124 kg) 126 kg (stainless 127 kg) 157 kg (stainless 158 kg)
800 litre 1361 mm 1019 mm 1170 mm 137 kg (stainless 138 kg) 140 kg (stainless 141 kg) 170 kg (stainless 172 kg)

RECENTLY ASKED QUESTIONS

Will the Upright Double fit my van?

The Upright Double is 1106 to 1361 mm long, 840 to 1019 mm wide and 992 to 1170 mm high, depending on the size, and weighs 99 to 172 kg empty. On the RO/DI versions the RO column stands up to 1326 mm high. A full tank adds about 1 kg per litre, so up to 800 kg of water on the 800 litre. Check the space and payload in your own van first; the specifications table and the drawings on the Safety tab give every measurement, and our customer service team can talk it through.

Should I choose the Upright or the Flat?

The Upright is taller and narrower: the 350 litre is 992 mm high and 840 mm wide. The Flat is low and wide on a similar length: its 350 litre is 575 mm high and 1044 mm wide. Pick the shape that suits the space in your van; see the Flat Double Operator to compare.

Coated or stainless steel?

Both have the same sizes and the same parts inside. The difference is the finish of the frame, and the stainless version weighs up to 2 kg more.

Which filtration do I need?

It depends on your water and how you fill. Delivery Only has no purification on board, for cleaners who fill from a static purification system or a pure water filling station. DI purifies the water as you use it and is advised for soft water areas. RO/DI purifies it as the tank fills and is advised for hard water areas. Types of filtration explained goes into more detail.

Does it come with hose reels?

No. Add two from the options on this page, one for each operator, such as ReelMaster™ Lite electric reels, or see our hose reels range for the full choice.

Can I fill it from a static RO system?

Yes. The Delivery Only version is made for that: fill the tank with pure water from your static unit and go. Our introduction to static purification systems explains how they work.

How long will a tank last?

It depends on the work and how fast the pumps run. As a rule of thumb, we expect each operator to use around 250 to 350 litres a day. Our introduction to pure water window cleaning explains how a system like this is used.

How is the battery charged?

From the mains with a smart charger, or from the van with a split charge relay or a battery to battery charger. The charger options on this page cover all three, and our battery charging guide explains which suits your van.

Can you install it for me?

Yes. We fit systems at our install centres in Barry, Liverpool, Grimsby, Billericay and Northern Ireland, usually in around 6 hours, including electric and hybrid vans, and installation is usually booked within 5 to 7 working days. Add it from the options on this page, or see Water Fed System Installation for the detail.

Single or Double Operator?

This is the two operator version, with two pumps and two flow controllers. Working alone? The Single has one of each, on the same tank sizes; see the Upright Single Operator.
