Description

A DI vessel is the simplest pure water setup there is: a pressure vessel filled with mixed bed resin, plumbed between the water supply and the pole. In a soft water area one vessel can be the whole system. In a hard water area the same vessel sits after an RO membrane and polishes the last few ppm out.

These are Spectrum SV-FK pressure vessels, supplied empty so you choose the resin. Both are 8 inches in diameter: the 11L stands 17 inches and holds 10.5 litres of resin, the 25L stands 35 inches and holds 23.6 litres. The shell is fibreglass over an HDPE liner, water contact parts are food grade, and the standard head carries 3/4 inch female ports with a 2.5 inch filling neck.

Rated to 10.5 bar, so mains pressure and pumped feeds are both well inside its limits. Filling is easier with the Blue Resin Funnel, and a TDS meter confirms the output is at 0 ppm before you start cleaning.

Product Specifications

  • Manufacturer: Spectrum, SV-FK standard pressure vessel

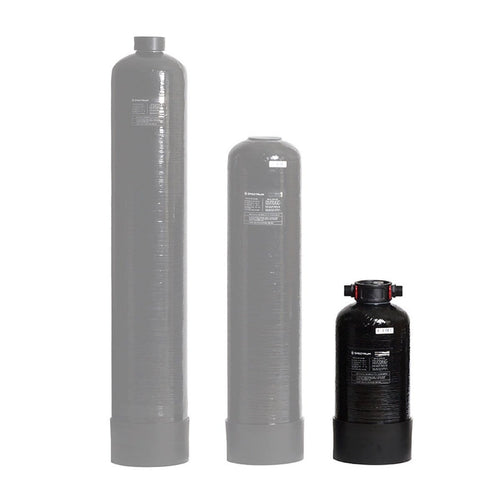

  • 11L vessel: SKU DI11LC (Spectrum SV-FK-817), 8" x 17", holds 10.5 litres of resin
  • 25L vessel: SKU DI25LC (Spectrum SK-FK-835), 8" x 35", holds 23.6 litres of resin
  • Construction: fibreglass outer shell, HDPE inner liner, Noryl head, Buna-N seals
  • Ports: 3/4 inch female (standard head); filling neck 2.5 inches
  • Maximum operating pressure: 10.5 bar
  • Operating temperature: 1°C to 50°C
  • Water contact parts are food grade

Delivery & Returns

Mainland UK: shipped via DPD next day service.

  • Free delivery: orders over £75 ex VAT qualify for free courier delivery.
  • Smaller items: sent via Royal Mail Tracked 48, 3 to 5 working days.
  • Oversized items: delivered by pallet within 2 to 4 working days; a signature is needed on delivery.
  • Returns: free 30 day returns. The returns policy has the details, and you can start a return through the DPD returns portal.
  • Same day dispatch available: orders placed before 3pm, Monday to Friday, are dispatched the same day at an additional cost. Select same day despatch at checkout.

Delivery times are not guaranteed, and Window Cleaning Warehouse cannot accept liability for items delivered to third party or unsecured addresses.

Safety

Spectrum SV-FK technical datasheet (PDF): materials of construction, pressure and temperature ratings and size configurations.

CODE: DI11LC

DI Resin Vessels

£94.49

£113.39

Was

Save £-94.49

Empty fibreglass DI pressure vessels for pure water systems. 11L and 25L sizes, 3/4 inch ports, rated to 10.5 bar. Fill with any mixed bed resin.

£94.49

Promo Available

Add To Cart To Unlock Free Shipping

Promo Available

Add To Cart To Unlock Free Shipping

Need a funnel?

Blue Resin Funnel for DI Vessels Resin and Vessels
Blue Resin Funnel for DI Vessels Resin and Vessels

Blue Resin Funnel for DI Vessels

SALE

£15.70

£18.84

Description

A DI vessel is the simplest pure water setup there is: a pressure vessel filled with mixed bed resin, plumbed between the water supply and the pole. In a soft water area one vessel can be the whole system. In a hard water area the same vessel sits after an RO membrane and polishes the last few ppm out.

These are Spectrum SV-FK pressure vessels, supplied empty so you choose the resin. Both are 8 inches in diameter: the 11L stands 17 inches and holds 10.5 litres of resin, the 25L stands 35 inches and holds 23.6 litres. The shell is fibreglass over an HDPE liner, water contact parts are food grade, and the standard head carries 3/4 inch female ports with a 2.5 inch filling neck.

Rated to 10.5 bar, so mains pressure and pumped feeds are both well inside its limits. Filling is easier with the Blue Resin Funnel, and a TDS meter confirms the output is at 0 ppm before you start cleaning.

Product Specifications

  • Manufacturer: Spectrum, SV-FK standard pressure vessel
  • 11L vessel: SKU DI11LC (Spectrum SV-FK-817), 8" x 17", holds 10.5 litres of resin
  • 25L vessel: SKU DI25LC (Spectrum SK-FK-835), 8" x 35", holds 23.6 litres of resin
  • Construction: fibreglass outer shell, HDPE inner liner, Noryl head, Buna-N seals
  • Ports: 3/4 inch female (standard head); filling neck 2.5 inches
  • Maximum operating pressure: 10.5 bar
  • Operating temperature: 1°C to 50°C
  • Water contact parts are food grade

Delivery & Returns

Mainland UK: shipped via DPD next day service.

  • Free delivery: orders over £75 ex VAT qualify for free courier delivery.
  • Smaller items: sent via Royal Mail Tracked 48, 3 to 5 working days.
  • Oversized items: delivered by pallet within 2 to 4 working days; a signature is needed on delivery.
  • Returns: free 30 day returns. The returns policy has the details, and you can start a return through the DPD returns portal.
  • Same day dispatch available: orders placed before 3pm, Monday to Friday, are dispatched the same day at an additional cost. Select same day despatch at checkout.

Delivery times are not guaranteed, and Window Cleaning Warehouse cannot accept liability for items delivered to third party or unsecured addresses.

Safety

Spectrum SV-FK technical datasheet (PDF): materials of construction, pressure and temperature ratings and size configurations.

RECENTLY ASKED QUESTIONS

What is a DI vessel?

A DI vessel is a pressure vessel filled with mixed bed deionising resin. Water passes through the resin bed, the dissolved minerals are captured, and it leaves the vessel at 0 ppm, ready for spot free window cleaning. In a soft water area a single vessel can be the whole purification system; in a hard water area it usually sits after an RO membrane as the polishing stage.

Do these vessels come with resin?

No, they are supplied empty so you choose the resin, and any mixed bed resin works. A 25 litre bag such as FaceLift Resin fills the 25L vessel in one go, or the 11L vessel twice over with some to spare.

Which size should I pick?

The 25L holds more than twice the resin, so it runs far longer between changes and suits daily pure water work or the polishing stage on a van system. The 11L is shorter and easier to place, and suits lighter use or tighter layouts. Your water hardness matters more than either: in a hard water area with no RO stage, even the 25L will exhaust quickly.

How do I fill the vessel?

Unscrew the head, pour the resin in through a funnel and leave a little space at the top, then refit the head and run water through briefly before checking the output. The filling neck is 2.5 inches, so the Blue Resin Funnel makes the pour a much cleaner job.

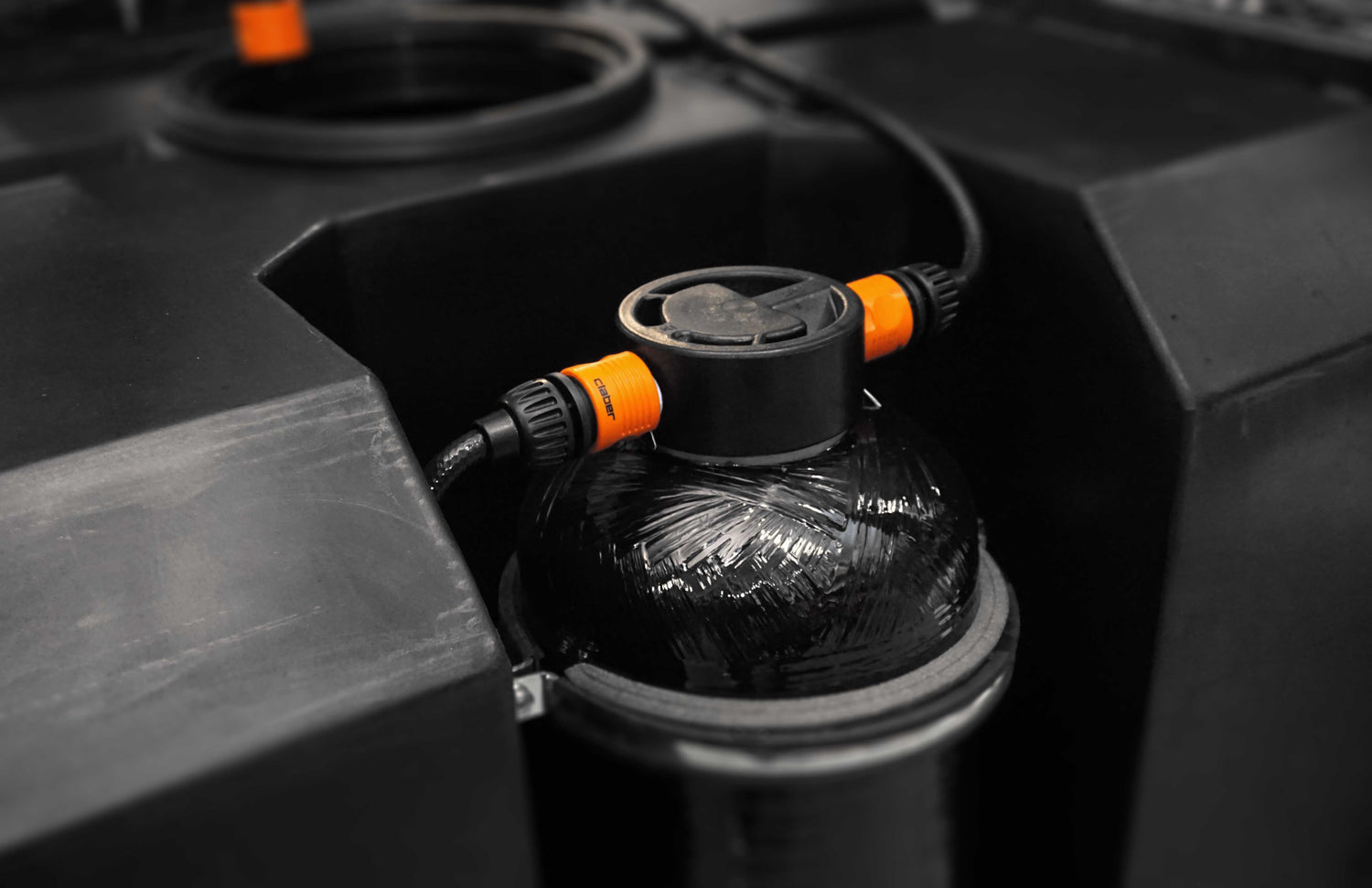

How do I mount it in a van?

The DI Resin Vessel Holder in its 8 inch size fits both vessels. It is a rubber lined clamp with an adjustable circumference and an M8 threaded anchor point for fixing to a wall or tank; the threaded bar itself is not included.

What fittings do the ports take?

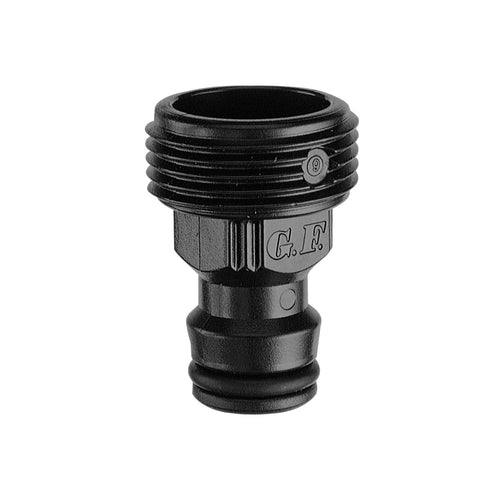

The standard head has 3/4 inch female ports. The usual setup is a Hozelock male to 3/4 inch threaded connector in each port, so the vessel connects to ordinary hose fittings, with a brass version available if you prefer metal.

How long will the resin last?

Resin exhausts by capturing minerals, so life depends on your incoming water and how much of it you use. Soft water can mean months from one fill; hard water with no RO stage can mean weeks. Check the output with a TDS meter and change the resin when the reading starts climbing.
