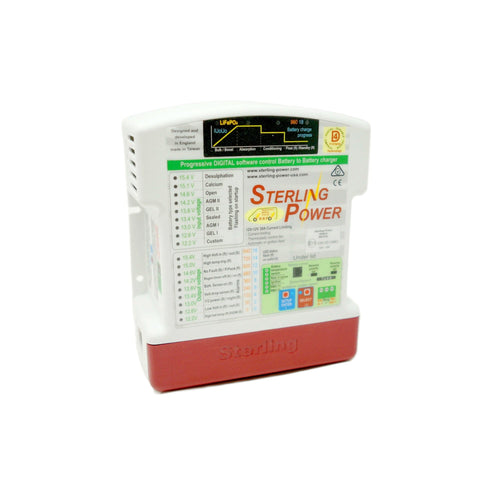

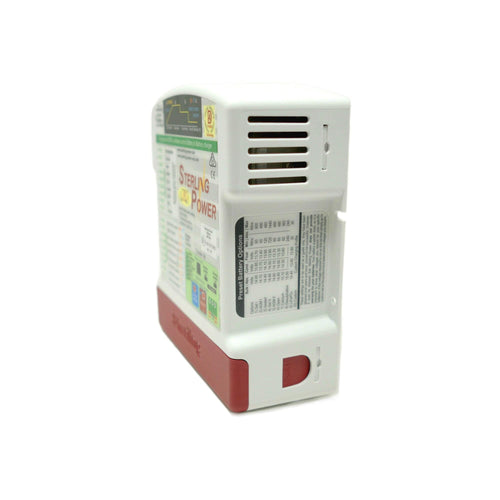

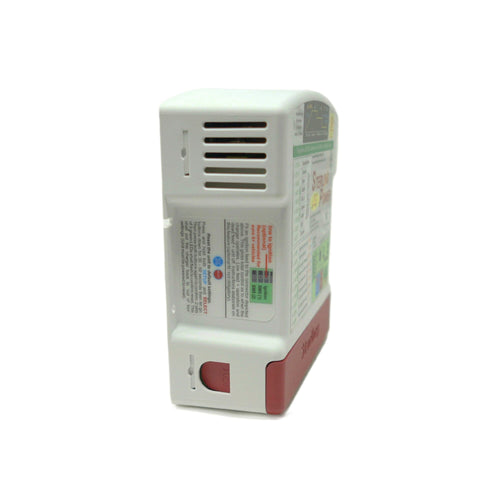

Battery to Battery Charger (AMC12)

SALE

£257.95

£309.54

Free Delivery

When Spending over £60.00+VAT

5% OFF

When Spending over £300 + VAT

Description

This AMC12 charger works on vehicles with a 12V electrical system to charge 12V battery packs.  The AMC charger works with Ignition control, Constant Voltage Alternators, Euro 5 & 6 engines, Stop/Start, Smart Alternator charging systems & Vehicles with Regenerative Braking, (Mercedes Benz Blue Efficiency Vehicles, VW Blue Motion Vehicles, Ford ECOnetic vehicles, Vauxhall ecoFlex vehicles to name a few). The unit delivers 30A charging currents to charge up to 300Ahr battery packs.

The unit operates with 9-30V and so works with long cable runs and large swings in input voltages. The unit is protected against current overload and over-temperature protection with a fully automatic reset. The software optimises the battery charging cycle and is configured to suit most types of lead-acid including Gel, AGM but can easily be reprogrammed to fit a particular type of battery or customer specification using the Ablemail Software Interface (ASI).  The optional Interface Card adds remote output voltage monitoring for when the secondary battery is a long way from the charger & Battery Temperature monitoring for operating in extremely hot or cold conditions.  The unit can be programmed to charge Lithium batteries.

The unit is assembled in an aluminium extruded case which can be filled with resin for operation in particularly harsh environments.  It can be supplied with a variety of connection options see the Ablemail Mechanical Options. This product is part of a large range & if this product specification does not meet your requirement please contact our technical department to see if we can meet your exact needs.

  • Output Load Current - 30A
  • Input Voltage - 12V nominal (10-15V)
  • No Load Input Current - 2mA @ 12v input
  • EMC - E11 Approved CE approved
  • Automatic overload and over-temperature protection with fully automatic reset
  • Output Voltage - 12V
  • Non-isolated
